Hot Runner Controllers
MOD24™ COMING SOON! A modern, modular controller with plug-n-play expansion up to 192 zones.

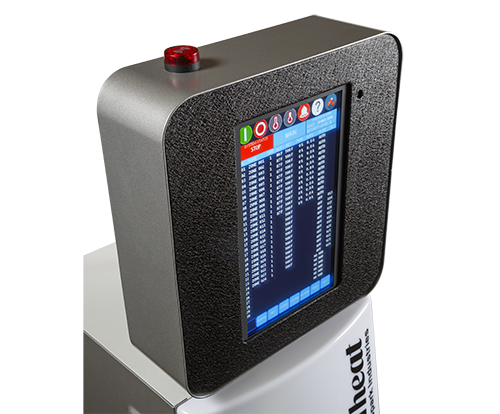

Pulse™ for up to 180 zones. Advanced I/O, max % power control w/ 10″ HMI.
Hot Runner Maintenance
Instantly diagnose circuitry on hot runner systems and cables using our patented MoldXChecker®
and CableXChecker® devices.
Mold Boxes
The SmartMold™ Hot Runner Mold Box saves time and money by protecting thermocouples and control modules while offering ease of access to connectors. Custom mold boxes are available.
Hot Runner Cables
Standard and custom heater and thermocouple cables using machined silver pins, heavy-duty strain reliefs, and shielded cable.
Heated Sprue Bushings
Integrally heated sprue bushings have a superior heat transfer and can process a wide range of resins.
Heated Machine Nozzles
Zeiger and Spark Industries have collaborated on a new heated tapered nozzle that’s designed for reduced pressure drop, self-cleaning operation and the ability to work with aggressive materials.
What is Advanced Hot Runner Temperature Control?

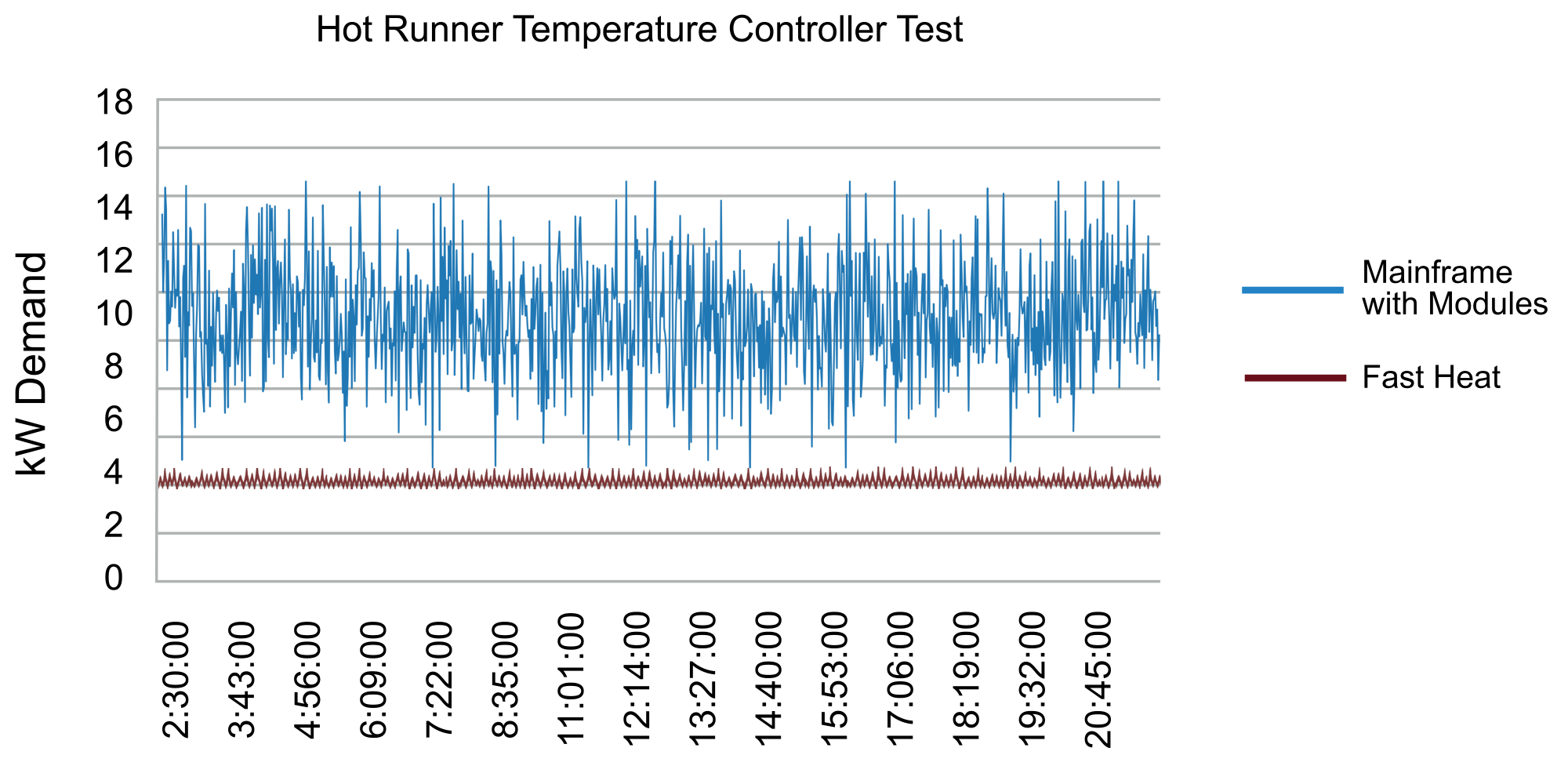

Hot runner systems replace cold runners that connect individual parts of a multi-cavity tool, reducing scrap, cycle time, part handling, and in some cases allowing for more intricate molding. The key to hot runner temperature control is introducing the least amount of temperature variation into the system, regardless of set point. We can see the difference in our Fast Heat control vs. other controllers by the peaks and valleys of KW demand from turning heaters on and off. You also notice our KW demand baseline is much lower. This is the difference between older technologies that only control one module at a time vs. our control that manages all zones as a complete system while predicting temperature behavior. Molders benefit from larger processing windows and energy savings.
How Fast is Fast Heat?
% power is updated for every zone once every .4167 seconds!
A “Pulse” of power is only .0083 seconds long!
Now that is FAST! This is one of the secrets to precise temperature control (we can’t share them all). The results are larger processing windows, less scrap, and the confidence to mold challenging parts.

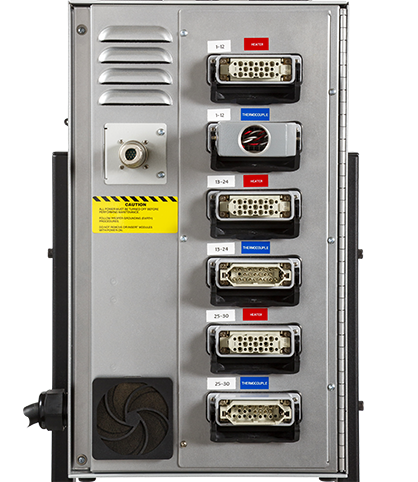

Pulse Auxiliary I/O Applications
- % Power Alarm – turn off a zone, the controller or stop the injection molding machine.
- Temp Alarms – change conveyor direction toward an inspection bin.
- Boost – increase injection pressure can automatically boost tip temps or use for preheat stations to raise temps before shuttling.
- Idle – automatically lower temps during production interruptions.
- Soak Timer – give the injection molding machine the all-clear to inject.
- And more…
